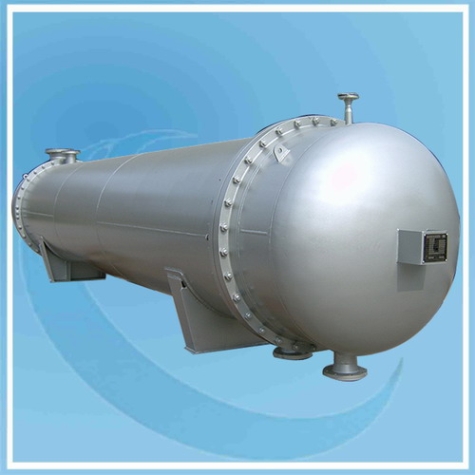

Shell and Tube type Heat Exchanger

Name:Shell and Tube type Heat Exchanger

Details
换热器(列管式冷凝器)
我公司生产的列管式冷凝器,按材质分为碳钢列管式冷凝器、不锈钢列管式冷凝器和碳钢与不锈钢混合列管式冷凝三种,按形式分为固定管板式、浮头式、U型管式换热器,按结构分为单管程、双管程和多管程。传热面积0.5~500m2,要根据用户需要定制。


公称直径


管程数
管子数量
换热面积 公称值/计算值
管程通道截面积 管程通道流速为0.5m/sec时的流量m/hr
公称压力
管子长度(m)
碳钢管Ø25x2.5
5000
2000
3000
4000
6000
不锈钢管Ø25x2
159
14
1.5/1.62
2/2.17
3/3.27


0.0044/0.0049
7.92/8.82
0.25
219
26
3/3.00
4/4.02
6/6.06
8/8.11

0.0082/0.0090
14.76/16.20
0.6

26
3/3.00
4/4.02
6/6.06
8/8.11

0.0041/0.0045
7.38/8.10
1.0
273
44
5/5.08
7/6.18
10/10.26
14/13.72
21/20.63
0.0138/0.0152
24.84/27.36
1.6

40
5/4.62
6/6.19
9/9.33
12/12.47
19/18.76
0.0063/0.0069
11.34/12.42
2.5
325
60
7/6.93
9/9.28
14/14.00
19/18.71
28/28.13
0.0188/0.0208
33.84/37.44
0.6

56
6/6.47
9/8.66
13/13.06
17/17.46
26/26.26
0.0088/0.0097
15.84/17.46
1.0
400
119
14/13.74
18/18.41
28/27.76
37/37.10
55/55.8
0.0374/0.0412
67.32/74.16
1.6

110
13/12.70
17/17.02
26/25.66
34/34.20
50/51.58
0.0173/0.0190
31.14/34.20
2.5
500
185


45/4.15
55/57.68
85/86.74
0.0581/0.0641
104.58/115.38


180


40/41.99
55/57.68
85/86.74
0.0283/0.0312
50.94/56.16

600
169


60/62.7
85/83.88
125/126.13
0.0845/0.0932
152.10/167.76


266


60/62.05
80/82.94
125/14.72
0.0418/0.0461
75.24/82.98

700
379


90/88.41
120/118.17
175/177.71
0.0091/0.1313
214.38/236.34


358


85/83.51
110/111.62
165/167.86
0.0562/0.0620
101.16/111.60

800
511


120/119.20
160/159.16
240/239.60
0.1605/0.1770
288.90/318.60


488


115/113.83
150/152.16
230/228.81
0.0767/0.0845
138.06/152.10

900
649


150/151.39
200/202.36
305/304.3
0.2039/0.2248
367.02/404.46


630


145/146.96
195/196.44
295/295.40
0.0990/0.1091
178.20/196.38

1000
805


185/187.78
250/251.00
375/377.45
0.02529/0.2788
455.22/501.84


792


185/184.75
245/246.95
370/371.36
0.1244/0.1374
223.92/246.96
