Lift and Flip Reacto
Your Current Location :Home » Product » Lift and Flip Reactor  » 5L Hastelloy Lifting Reactor

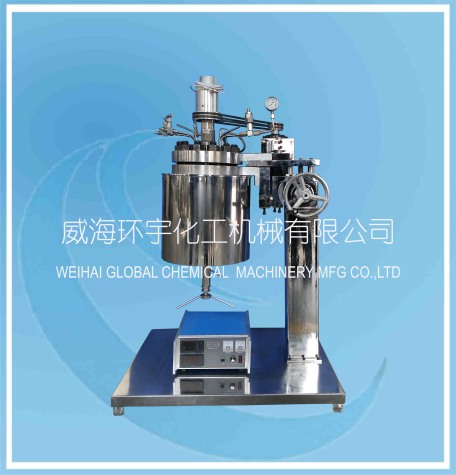

5L Hastelloy Lifting Reactor

Name:5L Hastelloy Lifting Reactor

Details
No. Description Parameter

1

Working Volume(L)

5

2

Total Volume(L)

5.7

3

Design Pressure(MPa)

12

4

Working Pressure(MPa)

10

5

Design Temperature(℃)

350

6

Working Temperature(℃)

300

7

Contacting Material

S30408+C-276

8

Mixing Type

Paddle + Impeller

9

Mixing Speed

20~750

10

Heating Method

Electric Heating

11

Heating Power(KW)

3.0

12

Temperature Control Accuracy

±1.5

13

Motor Power(W)

600

14

Sealing Type Magnetic
Hastelloy Reactor, Lifting Reactor, Pilot Reactor, High Pressure Reactor, Polyreactor, Hydrogenation Reactor
