Magnetic Reactor

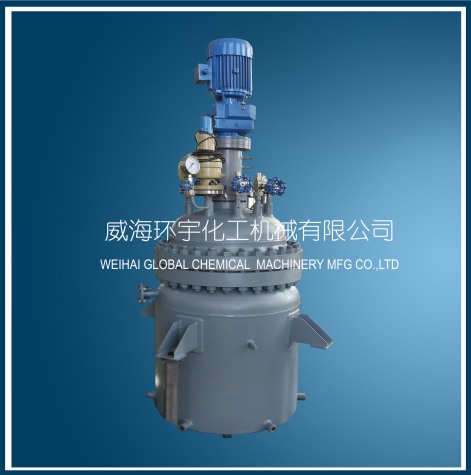

200L Industrial Reactor with Magnetic Seal

Name:200L Industrial Reactor with Magnetic Seal

Details
NO. Description Paremeter

1

Working Volume(L)

200

2

Total Volume(L)

/

3

Design Pressure(MPa)

6.4

4

Working Pressure(MPa)

5.0

5

Design Temperature(℃)

300

6

Working Temperature(℃)

260

7

Contacting Material

S31603+Q345R

8

Mixing Type

Self-suction

9

Mixing Speed

0~350

10

Heating Type

Thermal Oli Heating

11

Temperature Control Accuracy

±1℃

12

Motor Power(KW)

4

13

Sealing Type

Magnetic
