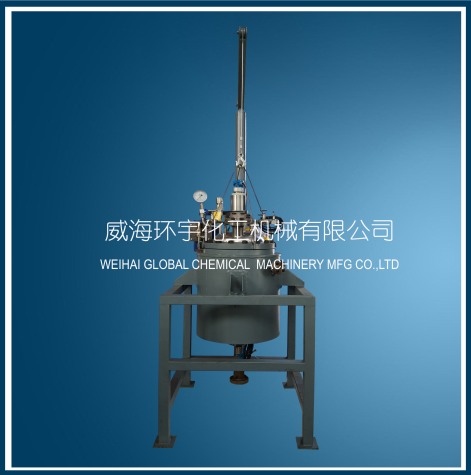

50L Rope Lifting Reactor

Name:50L Rope Lifting Reactor

Details

No.

Description

Parameter

1

Working Volume(L)

50

2

Total Volume(L)

56

3

Design Pressure(MPa)

2.5

4

Working Pressure(MPa)

2.0

5

Design Temperature(℃)

160

6

Working Temperature(℃)

120

7

Contacting Material

S30408

8

Mixing Type

Impeller+Self-suction

9

Mixing Speed

0~350

10

Heating Type

External circulation

11

Heating Power(KW)

/

12

Motor Power(W)

1.1 EX

13

Sealing Type

Magnetic
