Achievement

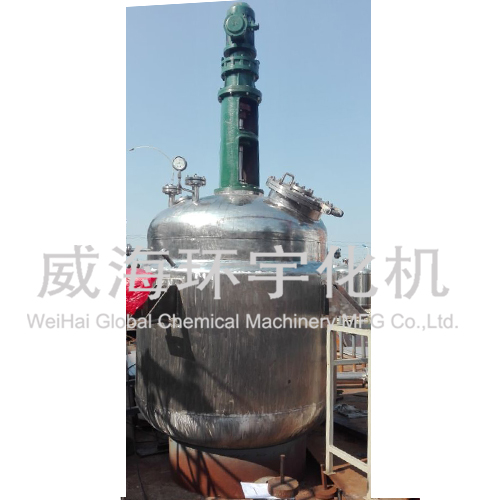

3000L Reactor was successfully completed and shipped to Liaoning Kaiyuan Hengtai Pharmaceutical Co., Ltd

Source: Time:2016-10-30 10:55:34 views:

3000L Reactor was successfully completed and shipped to Liaoning Kaiyuan Hengtai Pharmaceutical Co., Ltd


No

Name

Kettle

Jacket

1

Work Volume(L)

3000

2

Total Volume(L)

3680

3

Design Pressure(MPa)

0.4

0.33

4

Work Pressure(MPa)

0.3

0.3

5

Design Temperature(℃)

-60130

-60130

6

Work Temperature(℃)

-50120

-50120

7

Contact Material

S31603

S30408

8

Mixing Style

Anchor Type

9

Mixing Speed(rpm)

63

10

Media Name

CCL2, Organic acid gas

Ice cold medium

11

Media Proporty

Explosive

/

12

Heating Power(KW)

/

13

Temperature Accuracy(℃)

±1

14

Motor Power(KW)

5.5(Ex-proof)

15

Seal Type

Mechanical Seal

16

Corrosion Allowance

0

0

17

Weld Joint Coefficient

0.85

0.85
